Anatomy · a skill for Claude Code

The skill rests on one rule, written at the top of its instructions, above everything else:

The object is the explanation.SKILL.md, “The one idea that matters”

No boxes, no arrows, no labels floating in space. Claude has to invent a real, well-made thing whose working is the concept, and say in one sentence what moves and what that motion means.

A figure fails in two ways, and I watched it fail both ways many times before the rule existed. Too abstract: stacked plates, floating slabs and labelled boxes that don’t read as anything. Too flat: one big slab with a few lines on it, with no volume, no parts and nothing to discover. The cure for both is the same, a recognisable machine built from many small parts that each do something.22The machine is never copied from a reference picture. A reference can give the finish, the materials and the mood; the object is invented.

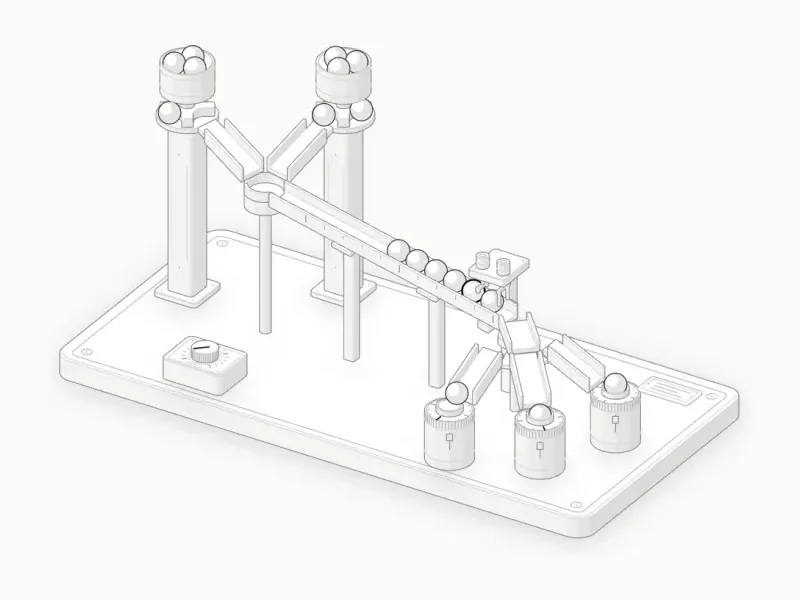

Some ideas map almost by themselves. A queue is a marble run: two hoppers feed one sloping lane, and the marbles wait in order behind an escapement until a timer drum takes them. A cache that forgets its oldest entry is a bookcase with four places on top, most recently used at the left. Others take more invention. A bloom filter is a fruit machine whose three reels are the three hash functions, and it only pays out when all three of a word’s flags are already up.

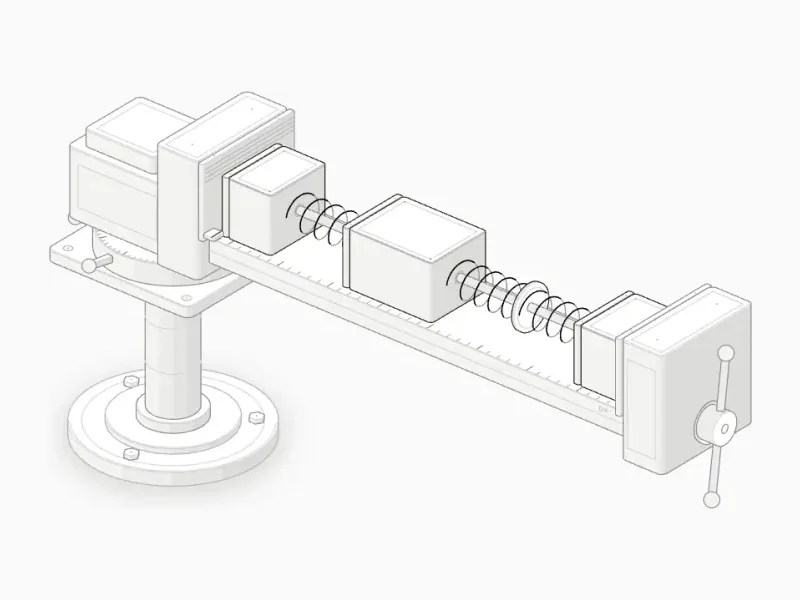

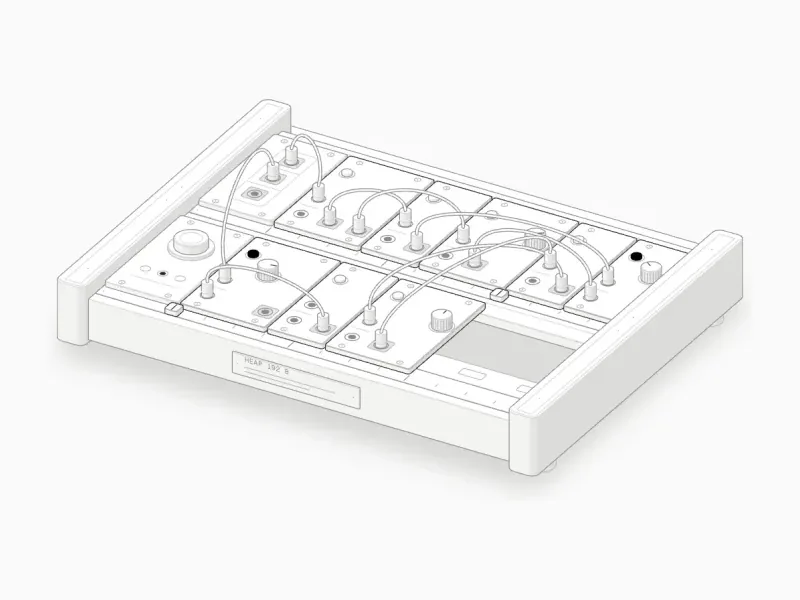

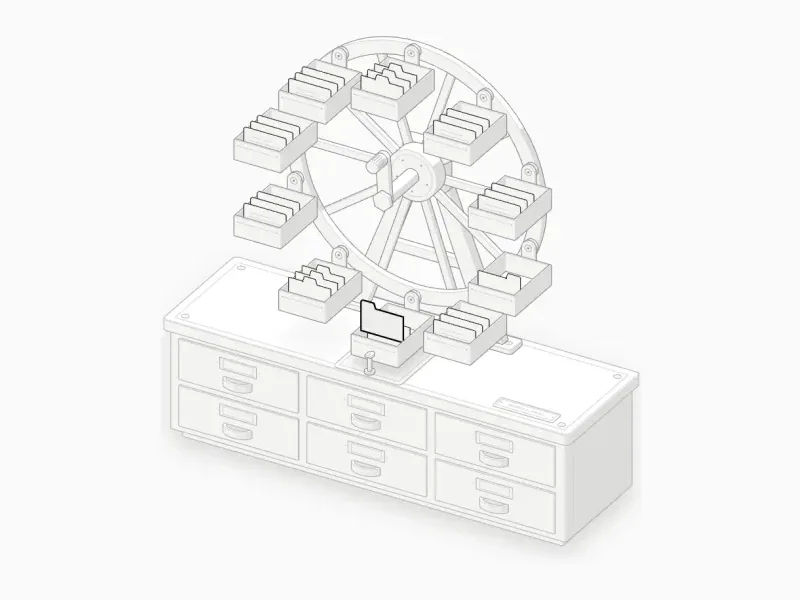

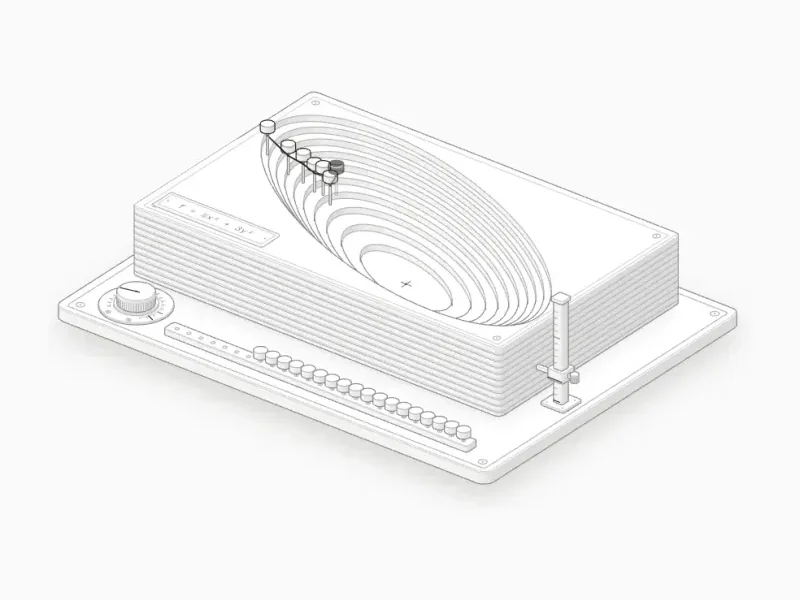

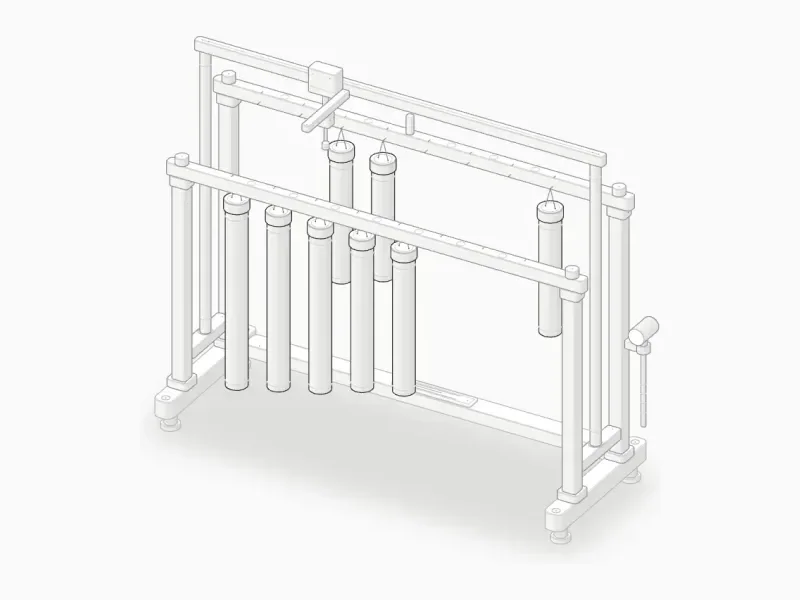

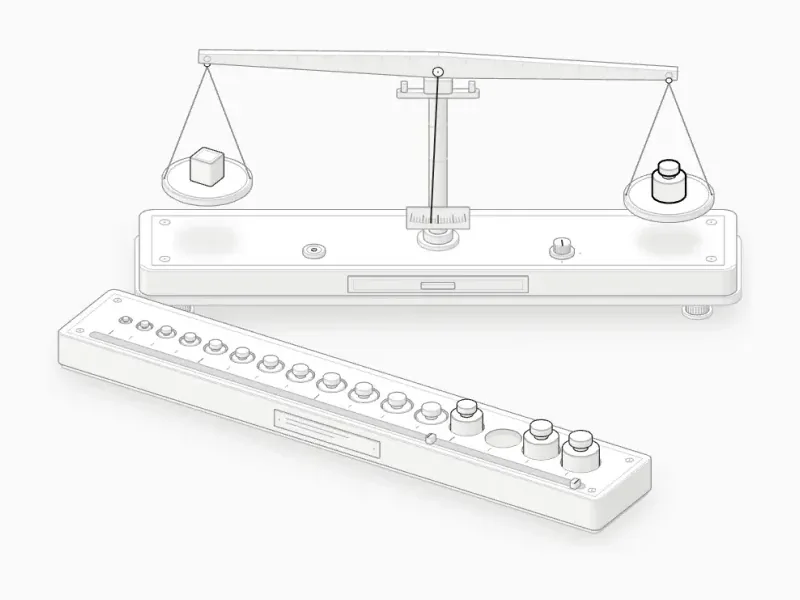

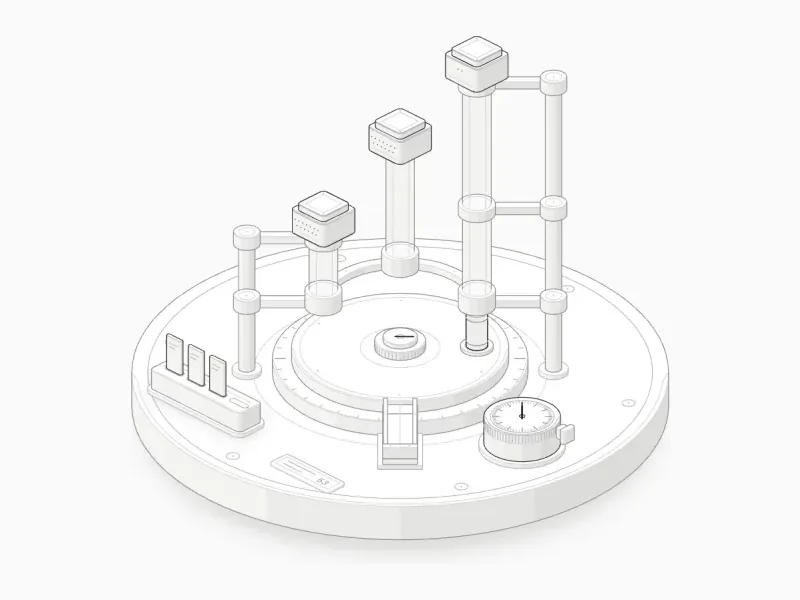

Sorting deskHash map collisionsLab balanceBinary searchPneumatic tubesDNS resolutionMarble runMessage queueBookcaseLRU cacheMail ropewayTCP handshakeContour modelGradient descentFruit machineBloom filterBench viseflex-growModular synthMark and sweepRotary card fileB-tree indexMusic-box recorderDebounce, throttleTank and keyMutexChime rackMerge sortRoulette wheelTemperature

None of these were drawn by hand. Each one started from a single line naming the idea. There are 33 so far, all live in the collection.

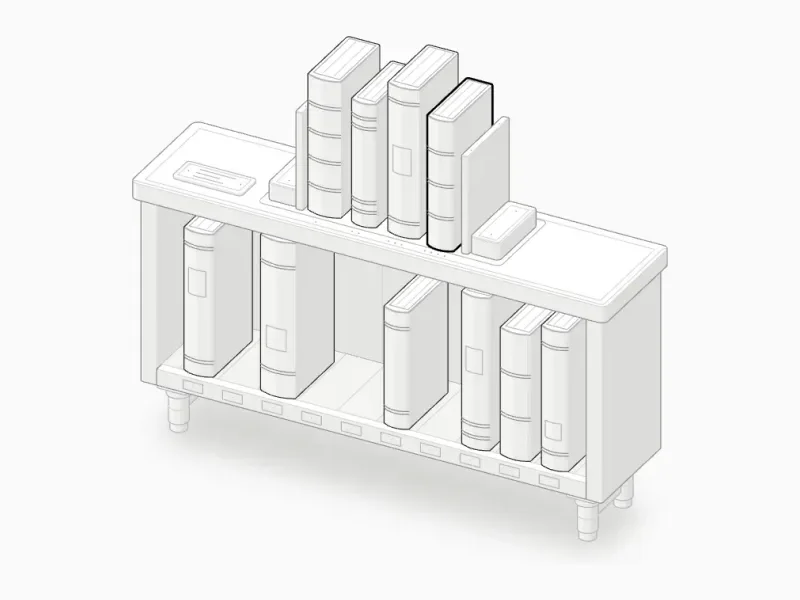

The prompt is the idea, not the drawing. I almost never say what to draw. “Explain how an LRU cache evicts entries” is enough, and deciding that it should be a bookcase is the part Claude is asked to do.

Three words change what you get, and Claude only reaches for them when you write them in the line:

If you already know the object, name it, with whatever true numbers matter. And if the figure is going somewhere in particular, say where. The skill writes framework-free TypeScript that outputs SVG and HTML, or React components for a Next.js site, in a dark or a light theme.

• Name the idea/anatomy explain how an LRU cache evicts entries, interactive
• Add shaders/anatomy explain how a jet engine afterburner works, interactive, WebGL
• Make it turn/anatomy explain why the Earth has seasons, interactive, 3D
• Or name the object/anatomy a mechanical metronome on a small wooden plinth, swinging at 120 bpm, with a sliding weight you can drag, interactive
• Say where it goes/anatomy explain how a CDN edge cache serves a request, interactive, as React components for our Next.js docs, dark theme

You don’t always need the command. The skill’s description covers any request for an explanatory diagram, a technical illustration or an interactive explainer, even one that never says “isometric”, so Claude reaches for it on its own.33Until a request matches, Claude sees only the skill’s name and its description. It reads the rest only when it needs it.

Between your line and the finished figure, Claude works through a fixed order. Most of the quality is decided in the first four steps, before any geometry exists.

1. Size it. Say up front whether this is a Figure, a Hero or an Epic, and roughly how long it will take.

2. Truth first. Collect the real numbers and behaviour, and write them as a small model that the motion and the readout both read.

3. Invent the object. A machine whose mechanism maps one to one onto the idea.

4. List the parts. At least forty, grouped into base, structure, mechanism, controls and the one lit subject. Each sits on another.

5. Plan the world. World units, plans as rounded rectangles and circles, a camera, then a fit to the card.

6. Build the geometry once. Every static path computed ahead of time. Moving parts are built at rest and moved.

7. Paint back to front. Sorted by depth, wrapping parts split in two, and the order proved by an audit once it gets dense.

8. Frame it. A card with a title, the interaction hint and a live readout. Words stay out of the drawing.

9. Make it live. Calm, time-based motion, an idle tour, pointer and keyboard, and stillness under reduced motion.

10. Verify like a critic. Screenshots, contact sheets, crops at four times and two automatic checks, until nothing is left to fix.

Step two looks like this in practice. The test rig, one of the skill’s examples, explains how a glass button swells and leans under a finger, and its whole behaviour lives in a small spring model. The parts, the readout, the screen-reader text and the caption all read from it, so none of them can disagree.

function spring(held: Spring, want: number, dt: number, [stiff, drag]: Tuning, calm: boolean) {
  const damping = calm ? 2 * Math.sqrt(stiff) : drag;
  const steps = Math.max(Math.ceil(dt * SUB_RATE), 1);
  const slice = dt / steps;
  for (let step = 0; step < steps; step++) {
    held.rate += (want - held.at) * stiff * slice - held.rate * damping * slice;
    held.at += held.rate * slice;
  }
  if (Math.abs(want - held.at) < QUIET && Math.abs(held.rate) < QUIET) {
    held.at = want;
    held.rate = 0;
  }
}

And step six. The dial gauge, the smallest example, starts with its base: four turned feet in depth order, a plate with a bevel, a groove inset five units from the edge, and a screw with a ring at each corner. Every one of those is a solid from the kit, not a line drawn by hand.

function plate() {
  const out = [`<path class="iso-halo" d="${k.haloOf(PLATE, -PLATE_H - FOOT_H, PLATE_H, P)}"/>`];
  for (const [x, y] of byDepth(k.corners(PLATE, 22))) {
    out.push(S(k.cylinder(x, y, 7, -PLATE_H - FOOT_H, 1.6, P, 28), { tone: "lo" }));
    out.push(S(k.cylinder(x, y, 5.4, -PLATE_H - FOOT_H + 1.6, FOOT_H - 1.6, P, 28), { tone: "mid" }));
  }
  out.push(S(k.slabOf(PLATE, -PLATE_H, PLATE_H, P, 8, 1.6), { tone: "mid" }));
  out.push(L(k.planOutline(k.insetPlan(PLATE, 5), 0, P), { tone: "lo" }));
  const screws = k.corners(PLATE, 10);
  out.push(L(screws.map(([x, y]) => k.ring(x, y, 2.2, 0, P, 16)).join(""), { tone: "lo" }));
  out.push(D(screws.map(([x, y]) => at([x, y, 0])), { size: 0.5 }));
  return out.join("");
}

The first step sets the budget. Every request lands in one of three sizes:

A Figure is built without asking. A Hero is announced first, then built. An Epic is never started without you: Claude gives the estimate, proposes a Hero that keeps the core of the idea, and lists what the full version would add.44Whatever the size, there is a working page in the browser within the first hour. The rest of the time goes into deepening it.

Every figure follows the same drawing rules. They are what make it read as a solid, made thing rather than a sketch.

One camera

Isometric, looking down at 30° from a corner. Nothing in perspective, so parallel edges stay parallel.

Solids

Every part is filled and painted in order, so what is in front hides what is behind. No see-through edges.

Four tones

Each side is shaded by the way it faces the light, with a lighter top.

One accent

Exactly one part is lit: the one the reader should watch.

Lines resolve

Every line ends on a face, another line or a dot. No leader lines, balloons or arrows.

Detail at 4×

At normal size it reads as one machine. Zoomed in, every region still has something true to find.

No words inside

Text lives around the drawing, never on it, apart from one tiny engraved label at most.

True numbers

Every readout comes from the model that moves the parts.

A figure is also a small program. It plays an idle tour when nobody touches it, pauses when you hover or focus it, answers the pointer and the keyboard, stops when it scrolls off screen and goes still under reduced motion. Its readout is announced to screen readers as it changes.

On a page of its own, a figure sits in a card with its number, title, hint and live readout in the four corners. On this site I moved the hint and the readout into the margin beside each figure, so the drawing stands on the page by itself.

The collection reads best one machine at a time. Each of these names the idea, then the object Claude chose for it; open one to play with it.

•

  Hash map collisions

  Sorting desk

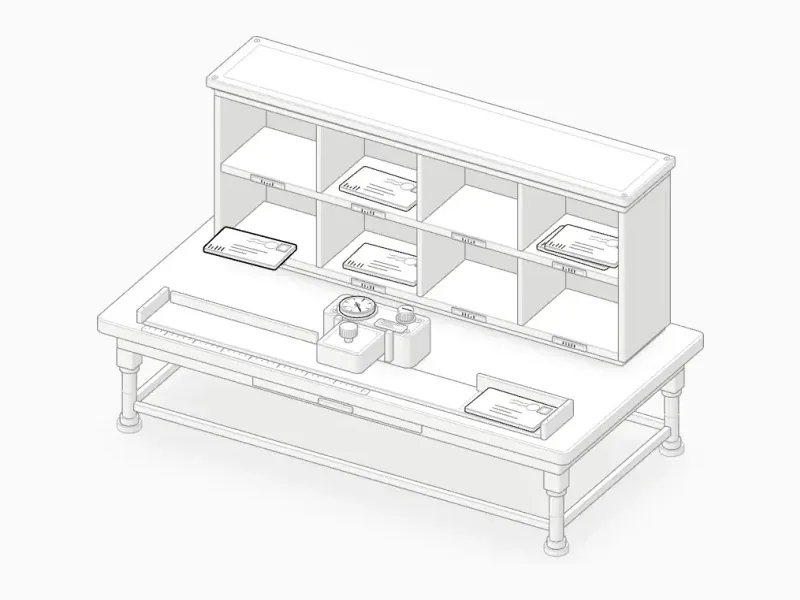

  A hash map files each key in a bucket, and keys that land in the same bucket pile up. A post-office sorting desk. A coding machine prints each letter's bucket, the hash of its name mod 8, and files it in that pigeonhole, on top of any letters already there.

•

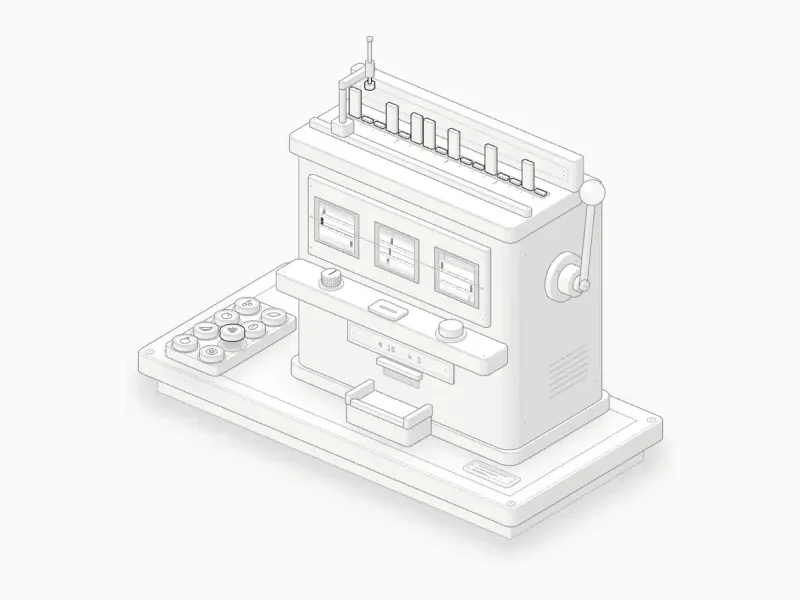

  Bloom filter

  Fruit machine

  A bloom filter can say “definitely not” for certain, but only “maybe” for yes. A fruit machine. Three reels are the three hash functions and a row of sixteen flags is the bit array; it pays out only when all three of a word's flags are already up.

•

  Mutex

  Tank and key

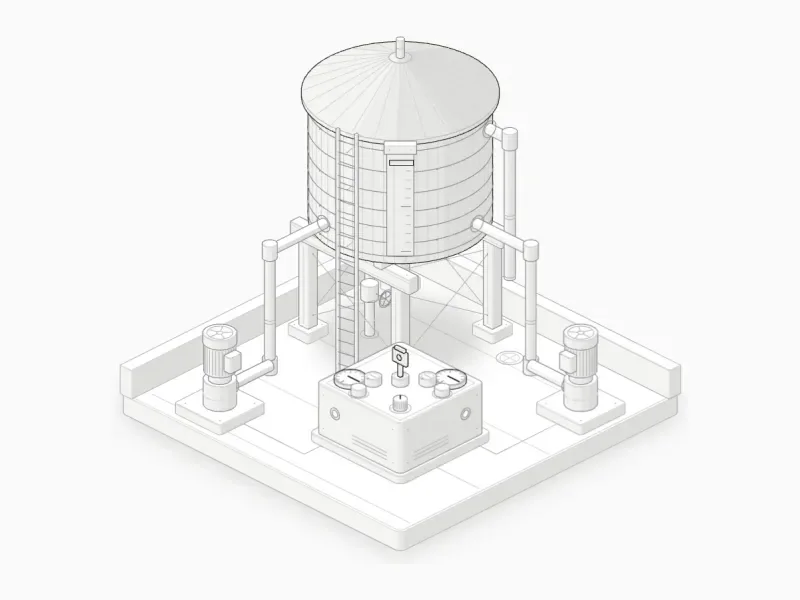

  Two writers reading the same value at once will both act on a stale number. A water tank filled by two pumps. Without the interlock key both controllers read the same level and overfill it; with it, only the one holding the key may read and run.

•

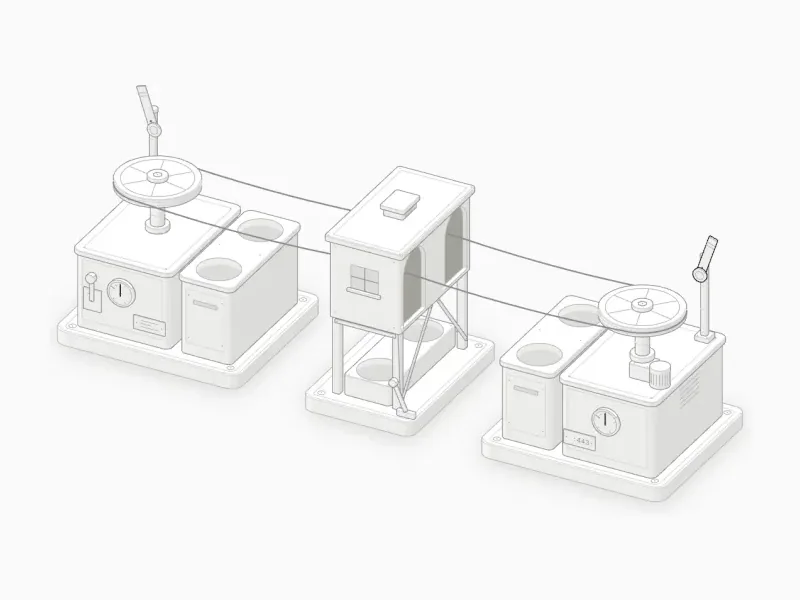

  TCP handshake

  Mail ropeway

  Before any data moves, both ends have to agree that the other one is listening. A mail ropeway between two stations. Canisters flying SYN, SYN with an ACK pennant, then ACK ride the rope across, and each station's semaphore shows its connection state.

•

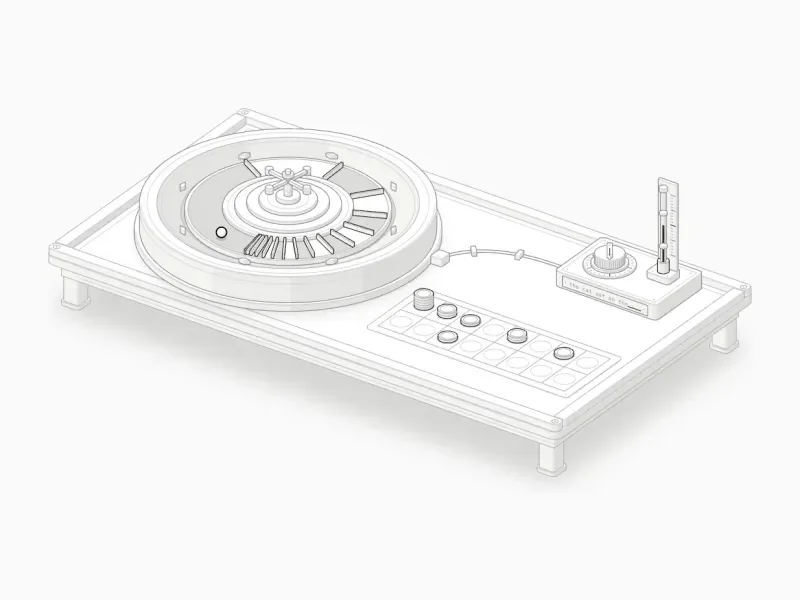

  Temperature

  Roulette wheel

  Temperature reshapes the odds of the next token without changing which tokens are possible. A roulette wheel whose sixteen pockets are the likeliest next tokens, each as wide as its probability. A thermostat knob sets the temperature and moves the frets.

•

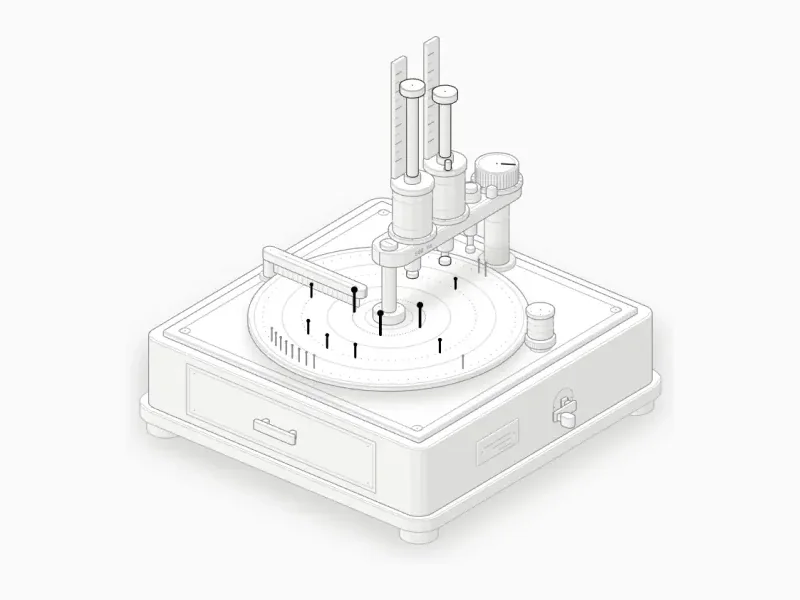

  Debounce, throttle

  Music-box recorder

  Debounce waits for quiet; throttle lets one call through per window, however many arrive. A music-box recorder with a turning pin disc. Every click of the knob is a call; the throttle and debounce dashpots each set their own pins, so you can read when each function actually ran.

The pattern is the same every time. The object has to do the idea, not stand for it, so the thing you watch move is the thing being explained.

Small ideas make small machines. The big ones are where the skill earns its keep: hundreds of parts, real engineering numbers, and shaders that live inside the drawing rather than on top of it.

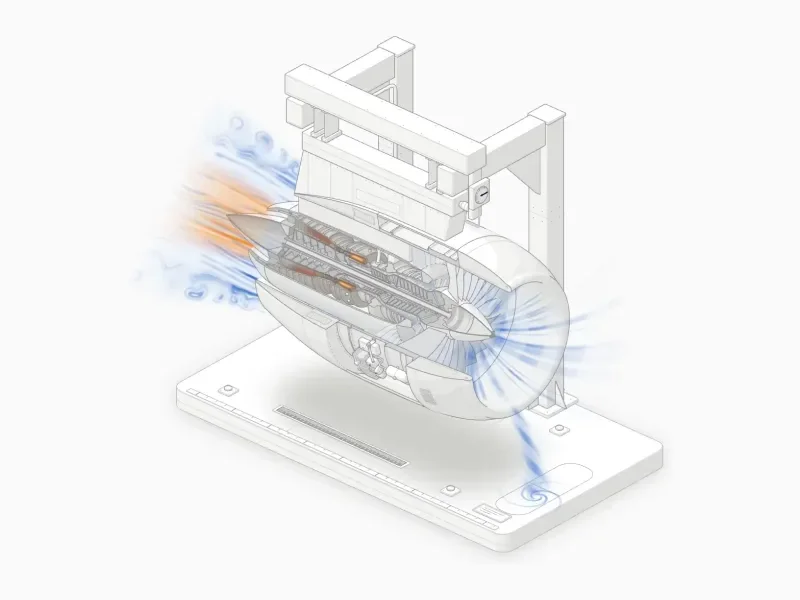

A Rolls-Royce Trent 970, the engine of the A380, hung from a ground-run thrust frame with its near upper quarter cut away. Drag the lever and the fan, intermediate and high-pressure spools wind up at their own speeds. The fan swallows 1.2 tonnes of air a second, most of it leaves as a cold bypass jet while the rest burns in the combustor, and the load cell reads the thrust climbing from 14 to 334 kN. Press Space for a take-off run.55The audit measured 6,320 overlapping pairs across 541 solids and found every one drawn in the right order.

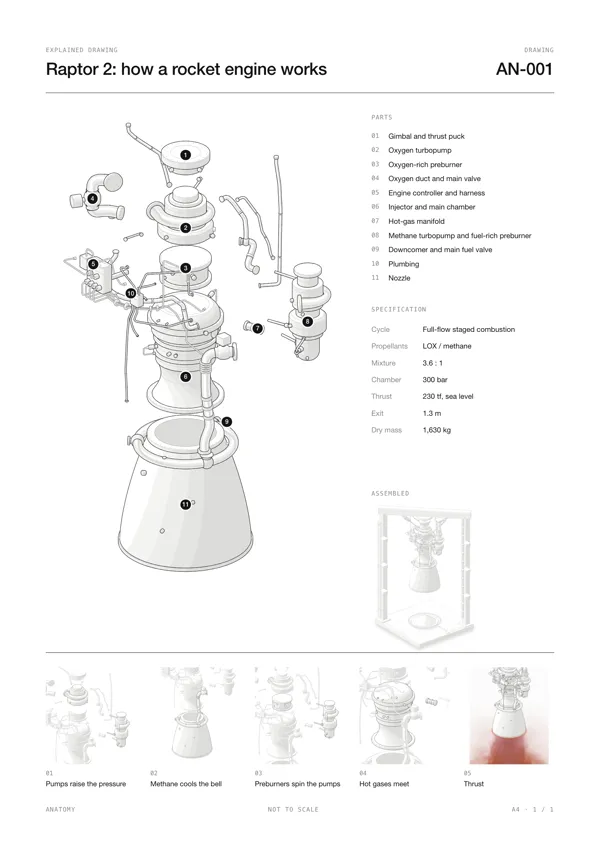

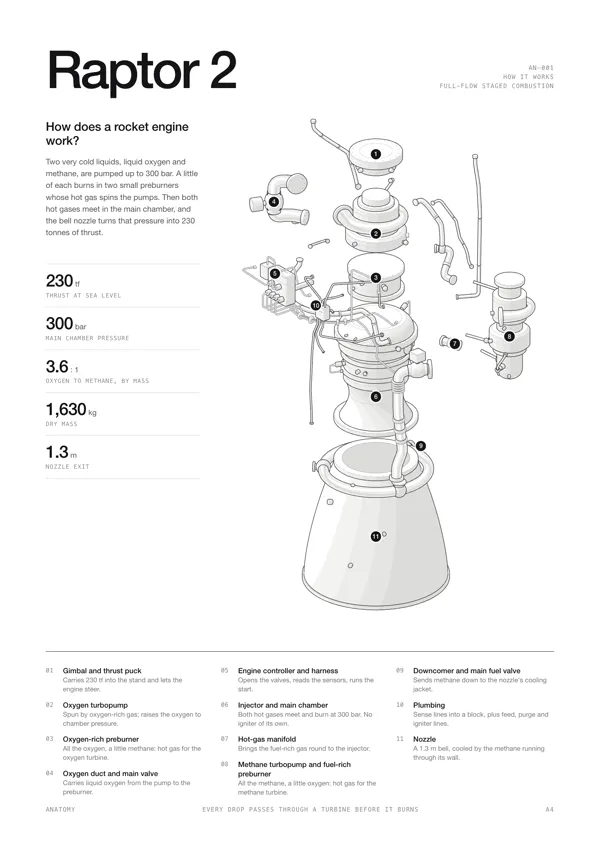

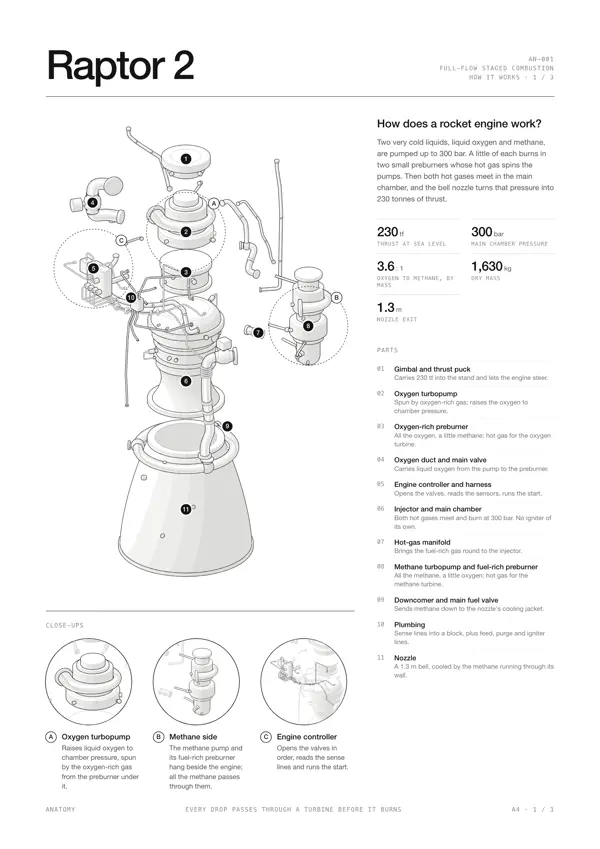

Raptor 2, SpaceX’s full-flow staged-combustion engine, hanging in a test stand. It is one of the skill’s own examples and its reference for dense pipework. Hover it and it comes apart into eleven assemblies, from the gimbal to the nozzle; press I to fire it. Every drop of oxygen passes through an oxygen-rich preburner that spins the oxygen pump, every drop of methane through a fuel-rich one that spins the methane pump, and the two hot gases meet in a main chamber at 300 bar.66The plume, shock, splash and steam are WebGL, drawn between a back and a front SVG, so the stand passes in front of the flame.

The first working version took 38 minutes. Making it right took ten more hours, and an audit now proves that no pipe passes through anything, at rest, apart and in every frame between.

Most figures are pure SVG. When an idea needs fire, water, plasma or light, Claude adds WebGL shaders drawn in the same isometric camera, so the flame sits inside the drawing instead of on top of it. A few figures go further and turn in true 3D.

SVGWatch movementWebGLTurbofan ground run3DSeasons

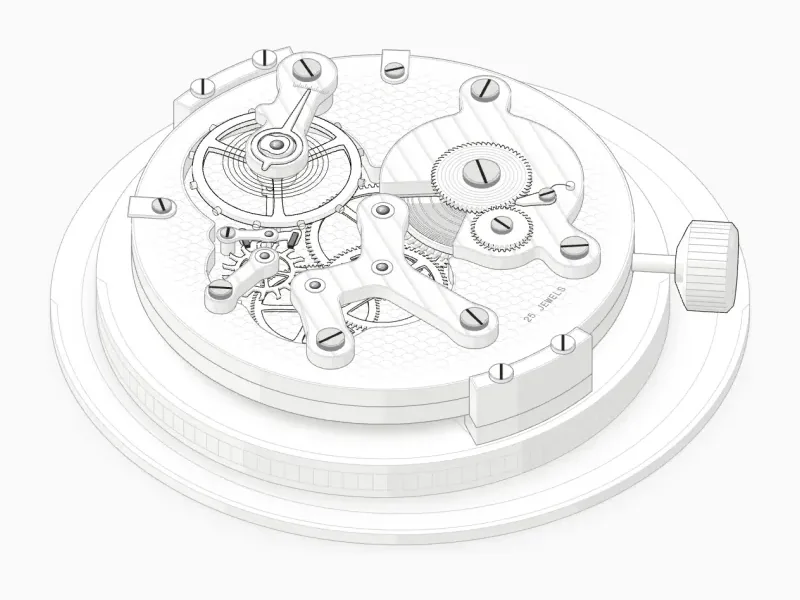

SVG. The watch is SVG only: four tones by facing, and a painter’s order that is solved again on every frame while its bridges are apart. It redraws only the parts that move.

WebGL. The turbofan adds one canvas for the intake streaks, the bypass wind, the combustor flame, the turbine glow and the exhaust. Every value rides an envelope, so nothing pops, and the readout never disagrees with the picture.

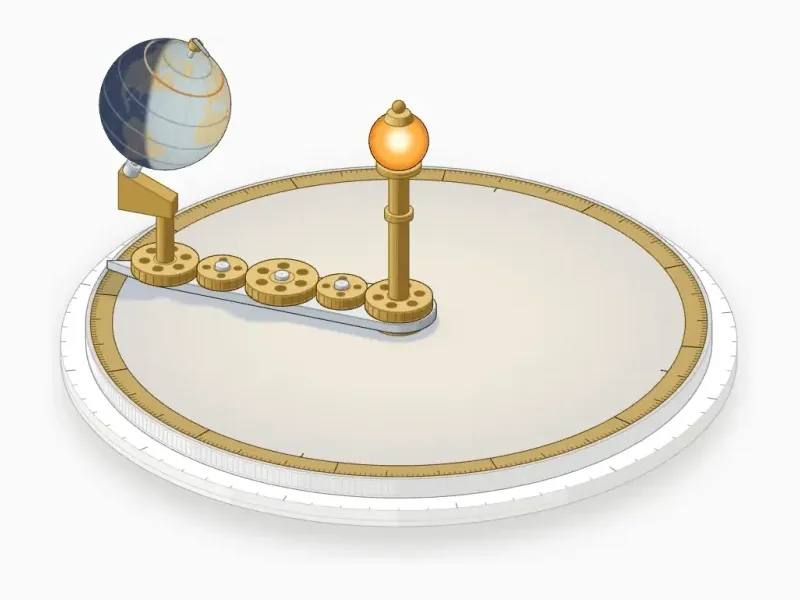

3D. Seasons turns 26 parts in true 3D, re-projected every frame, with two canvases for the lamp’s light. Its readout comes from the Almanac’s solar formulas: at 50°N the day lasts 16 h 22 m in June and 8 h 04 m in December.773D is still a beta. A small turning figure runs at 60 fps; a dense 380-part test hand ran at about 20.

Detail costs time, and I would rather show the real numbers than guess. These are Claude’s active time from the first prompt to the shipped figure, review rounds included and idle gaps left out.

The pattern holds across the collection. A first version that runs comes quickly. Most of the time goes into the second look, at four times the size, where the faults are: a cable through a duct, a nozzle shaded in steps, a blade folding into a sliver at the cut.

Every figure in the collection is also a React component, live and themeable down to the colour of its last line.

npm install anatomy-figures

import { Watch } from "anatomy-figures";

export default function Page() {
  return <Watch theme="light" />;
}

Each figure is its own entry, so importing one never pulls in the others:

import Turbofan from "anatomy-figures/turbofan";

Five themes come with it: dark, light, paper, blueprint and sepia. Pass one as theme, set one for a whole tree with AnatomyTheme, or pass your own --anatomy-* tokens. The figures on this site are the light theme with the card set to the colour of the page.

import { AnatomyTheme, Turbofan } from "anatomy-figures";

<AnatomyTheme theme="paper">
  <Turbofan />
</AnatomyTheme>

<Turbofan theme={{ base: "light", "--anatomy-card": "#fafafa" }} />

Every token. Every fill, line and label in a figure reads one of these 26 variables. Pass any of them in tokens, or inside a theme object. They are set on the figure itself, so they win over CSS from outside.

<Watch
  theme="light"
  tokens={{
    "--anatomy-card": "#ffffff",
    "--anatomy-lit": "#e5484d",
    "--anatomy-weight": "0.8px",
  }}
/>

Without React, every figure is also a custom element:

import { define } from "anatomy-figures/element/turbofan";

define();

<anatomy-turbofan theme="dark"></anatomy-turbofan>

Add the skill to Claude Code with one command:

npx skills add wheresryan22/anatomy

Or download the skill and unzip it into your skills folder:

unzip anatomy.zip -d ~/.claude/skills

Then open Claude Code in your project and ask for anything that works. Name the idea, not the drawing.88Six complete examples ship with the skill, from a dial gauge of about 300 lines to the Raptor engine, and Claude opens the closest one before it starts.

• /anatomy explain how a pin tumbler lock opens, interactive
• /anatomy explain how a CPU cache line is filled, interactive
• /anatomy explain how a gas burner mixes air and fuel, interactive, WebGL
• /anatomy explain how React reconciles a list, interactive

Claude is very good at building these and not always good at seeing them. It optimises for a figure that works, and a part can be right in every number and still look wrong. The fixes that mattered most came from watching a figure play and describing what felt off.

It is slow when it is good. The skill asks for at least forty parts in every figure and will not trade detail for speed on its own. If you need something quick, say so, and expect a Figure rather than a Hero.

3D is a beta. It turns one subject at a time, and a full audit of a turning figure takes fifteen to twenty minutes, so it is worth asking for only when a part really has to move in depth.

References are for mood. Give it a photograph and it will take the finish, not the object. A faithful copy of someone else’s drawing is not what it is for.

So treat the first figure as a draft. Play with it, notice what is wrong, say so, and ask again. How I built it shows what that loop looked like for the skill itself.
